| Name: | Manual Lab Jack: J08SS60 |
|---|---|
Product Description

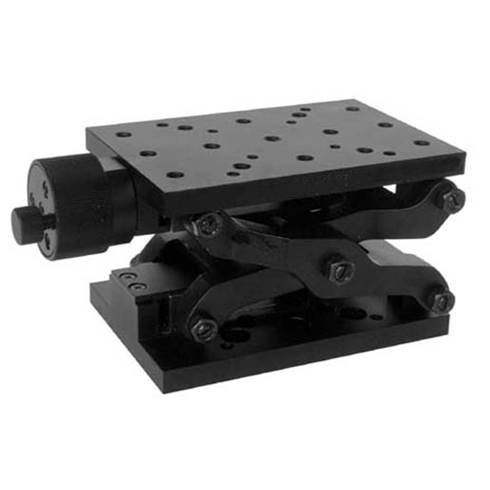

Manual Lab Jacks,
Travel 60mm
Features:
*The lab jack table suitable to use for long travel, high loading adjustment
*Crisscross
structure, lead screw driver, double guide position for the lab jack smooth moving, high
accuracy and loading
*Mounting
holes both on lab jack table top and bottom for combine with other stages easily
*Hand
wheel locking can lock the lab jack position
Model
Number | J08SS60 |
Dimension | 120mm
x 80mm |
Drive | Lead
Screw Drive |
Travel | 60mm |
Min
Adjustment | 5μm |
Loading | 20kg |
Loading | 1.15kg |
Material | Aluminum |
Surface
Treatment | Black-Anodized |
