| Name: | Manual Rotary Stage: J02SX100 |
|---|---|
Product Description

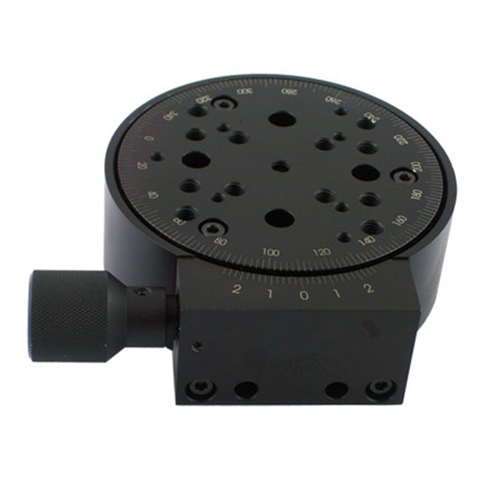

Manual Rotary Stage, diameter 100mm
Production
Feature:
*The rotary stage table top can rotate in 360°
*Rotary stage Worm
Gear design for high loading and accuracy
*The rotary stage with regular holes both on top and bottom for connecting the other stages
Model
Number | J02SX100 |
Diameter
of Table | 100mm |
Drive | Worm
Gear |
Adjustment
Range | 360° |
Min
Score | 2° |
Min
Reading | 12’ |
Min
Adjustment | 36” |
Loading | 15kg |
Run-out
of Top Plate | 30μm |
Eccentricity | 15μm |
Degree
of Parallelization | 30μm |
Weight | 0.5kg |
Material | Aluminum |
Surface | Black-Anodized |
