| Name: | 2 Axis Motorized Rotary Stage / Azimuth Elevation Rotary Stage |
|---|---|
Product Description

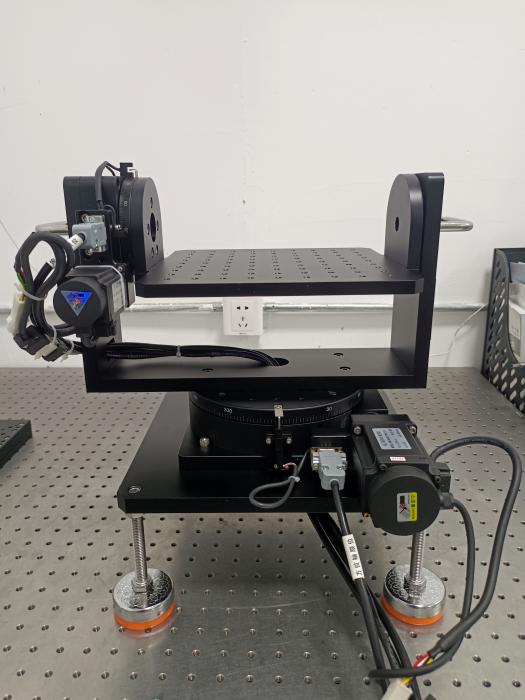

2 Axis Motorized Rotary Stage / Azimuth Elevation Rotary Stage
Youtube link
https://youtube.com/shorts/n8LbrLRuNj4
The 2 Axis Motorized Rotary Stage is a precision azimuth-elevation positioning platform designed for laboratory testing, sensor positioning, automated measurement and other applications requiring accurate two-axis angular motion.
The system consists of an azimuth axis and an elevation axis, both driven by single-turn absolute servo motors. The azimuth axis provides a rotation range of ±180°, while the elevation axis provides ±45° travel. Both axes offer a positioning accuracy of ±0.03° and a maximum rotation speed of 30°/s.
The standard configuration supports a 10 kg payload and can accommodate a test object of approximately 250 mm cube size. The mechanical structure is made of aluminum alloy with black anodized surface treatment and adjustable leveling feet.
The motion controller supports independent two-axis control, position mode and speed mode, motion status feedback, emergency stop protection and power-off protection. Communication interfaces include RS232 serial communication and Ethernet, and control software as well as secondary development documentation are provided for integration into automated test systems.
Key Specifications
| Specification | Value |
|---|---|
| Product Type | 2 Axis Motorized Rotary Stage |
| Motion Axes | Azimuth + Elevation |
| Drive Type | Servo Motor |
| Azimuth Travel | ±180° |
| Elevation Travel | ±45° |
| Azimuth Positioning Accuracy | ±0.03° |
| Elevation Positioning Accuracy | ±0.03° |
| Azimuth Speed | 30°/s |
| Elevation Speed | 30°/s |
| Payload Capacity | 10 kg |
| Recommended Object Size | Up to approximately 250 mm cube |
| Automatic Homing | Included |
| Power-Off Protection | Included |
| Motion Status Feedback | Included |
| Control Modes | Position Mode / Speed Mode |
| Communication | RS232 / Ethernet |
| Number of Controlled Axes | 2 |
| Control Software | Included |
| Secondary Development Documentation | Included |
| Power Supply | 220 VAC |
| Power Consumption | Approx. 400 W |
| Mechanical Material | Aluminum Alloy |
| Surface Finish | Black Anodized |
| Slip Ring | Not Included |
| Operating Environment | Normal Indoor Temperature |

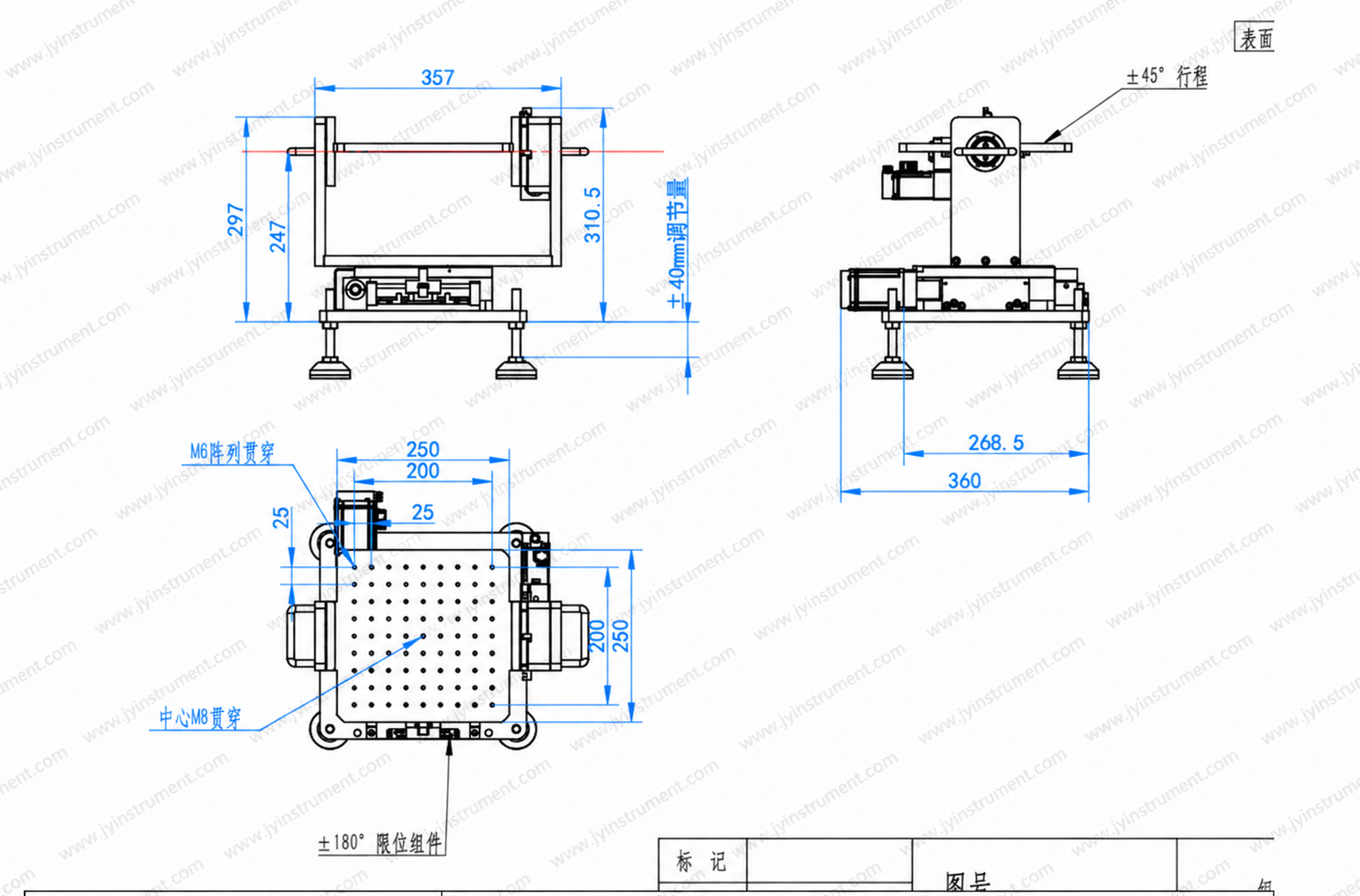

The standard mechanical unit weighs approximately 18.8 kg, with an approximate overall size of 427 × 300 × 292 mm. Final dimensions are subject to the confirmed production drawing.
Typical Applications
This azimuth elevation rotary stage can be used for:
Sensor positioning and calibration
Laboratory automated testing
Precision angular positioning
Optical and RF test positioning
Device orientation testing
Two-axis motion control experiments
Customized test and measurement systems
Rotation range, payload, mounting interface, dimensions and control configuration can be customized according to specific test requirements.
