| Name: | Manual Optical Fiber Adjuster |
|---|---|
Product Description

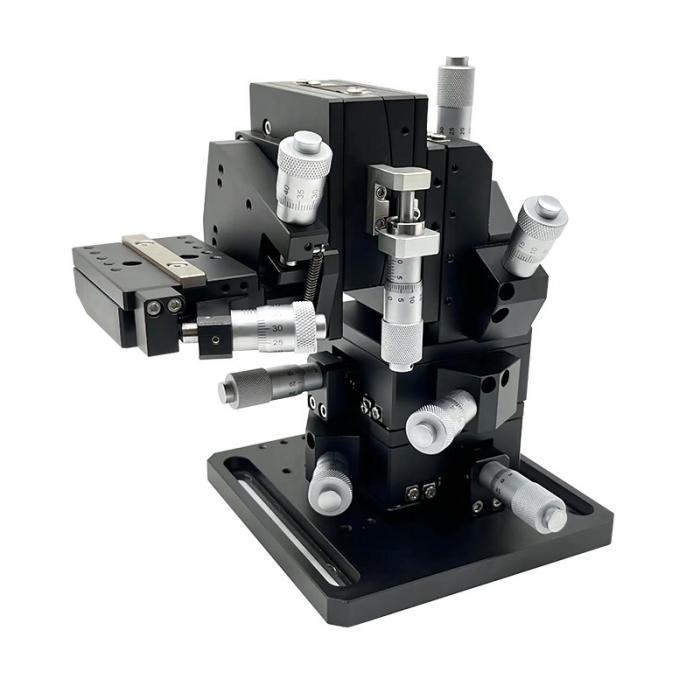

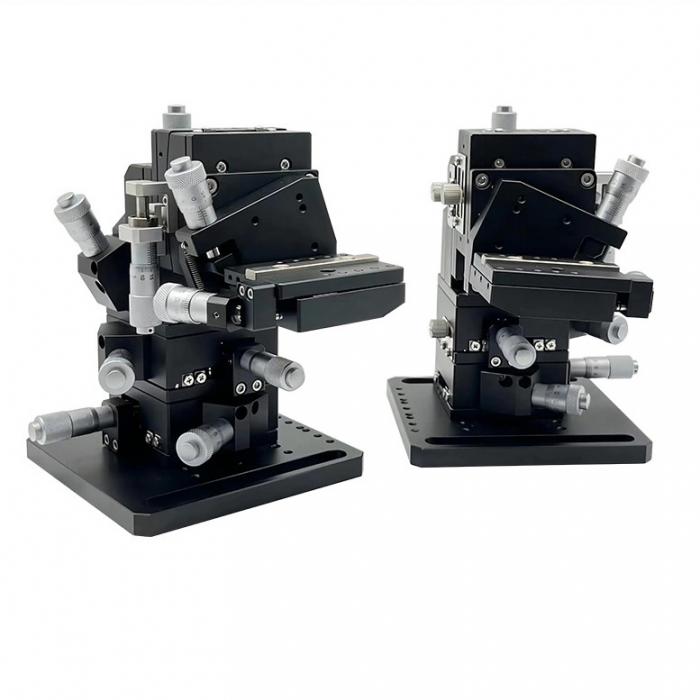

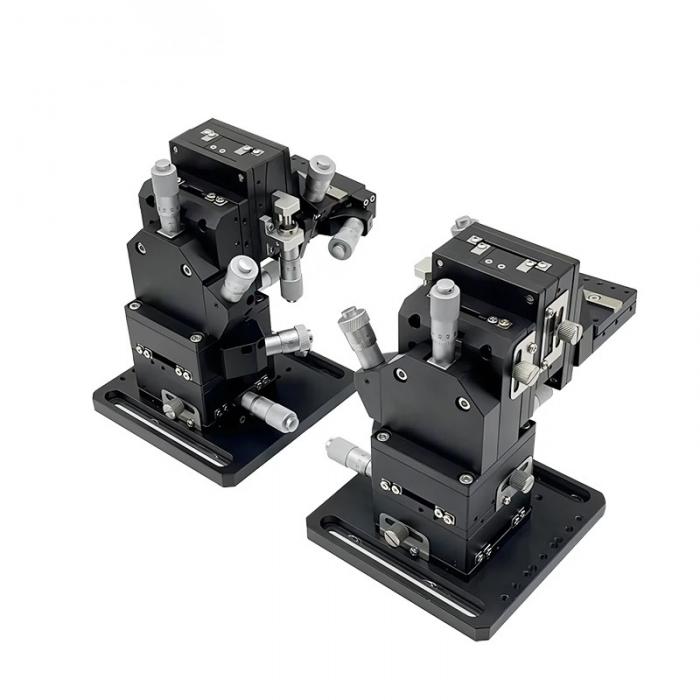

Manual Optical Fiber Adjuster
Model Number | JFB130 | |||||

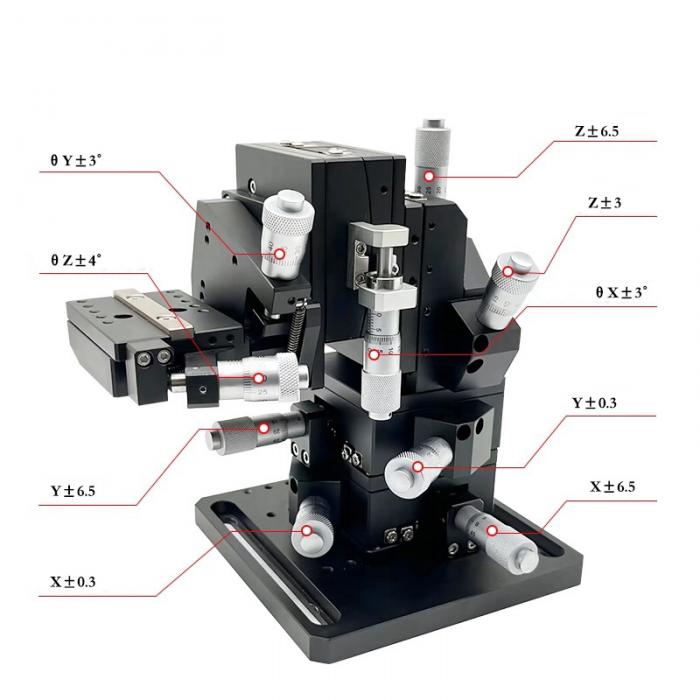

Axis | X Axis | Y Axis | Z Axis | θX | θY | θZ |
Travel Range | ±0.3（Fine） ±6.5 （Coarse） | ±3° | ±3° | ±4° | ||
Material | Aluminum | |||||
Guide | Cross Guide | |||||
Surface Treatment | Anodized-Black | |||||

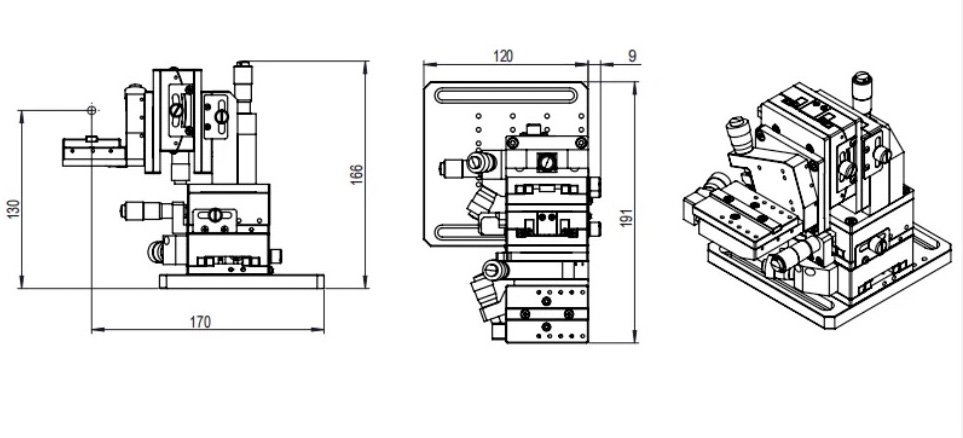

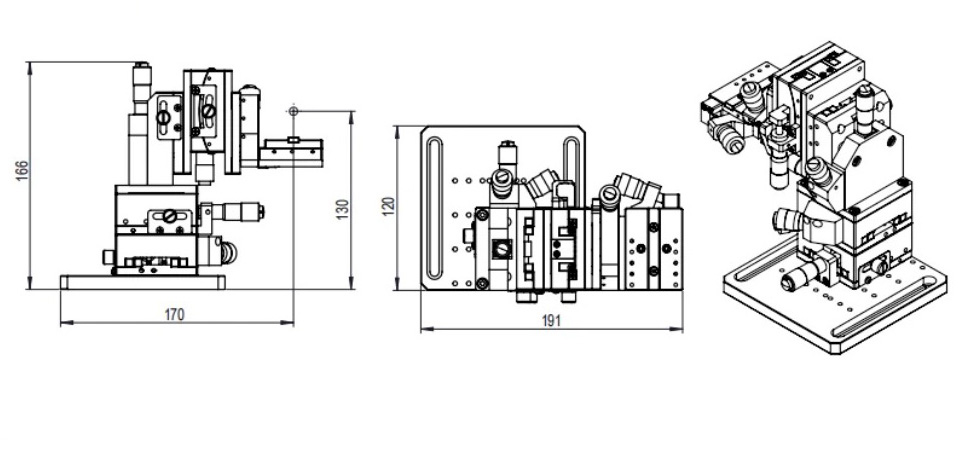

Center Height | 130mm | |||||
Resolution | 0.5μm（Fine） 10μm（Coarse） | 0.49′ | 0.46′ | 0.55′ | ||
Weight | 2.5kg | |||||
