| Name: | Motorized XY Translation Stage with Rotary Stage | Custom XY Linear Stage and Rotary Table |
|---|---|
Product Description

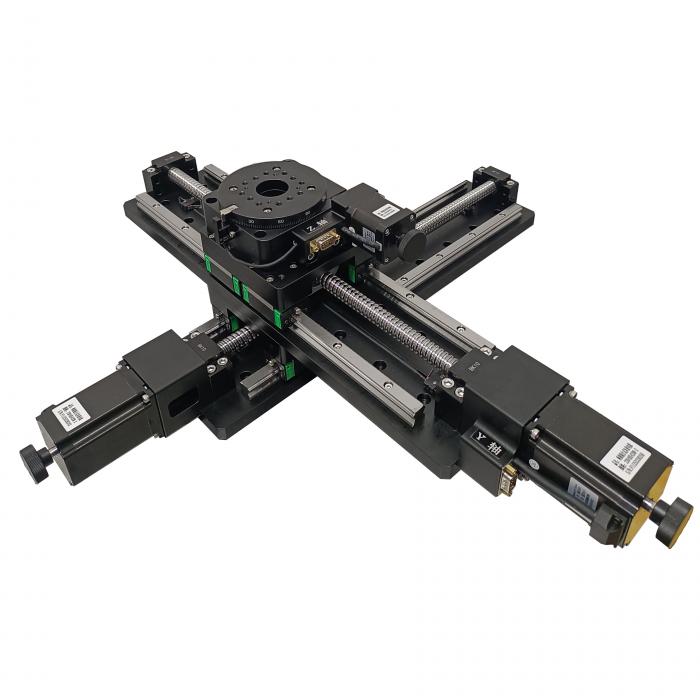

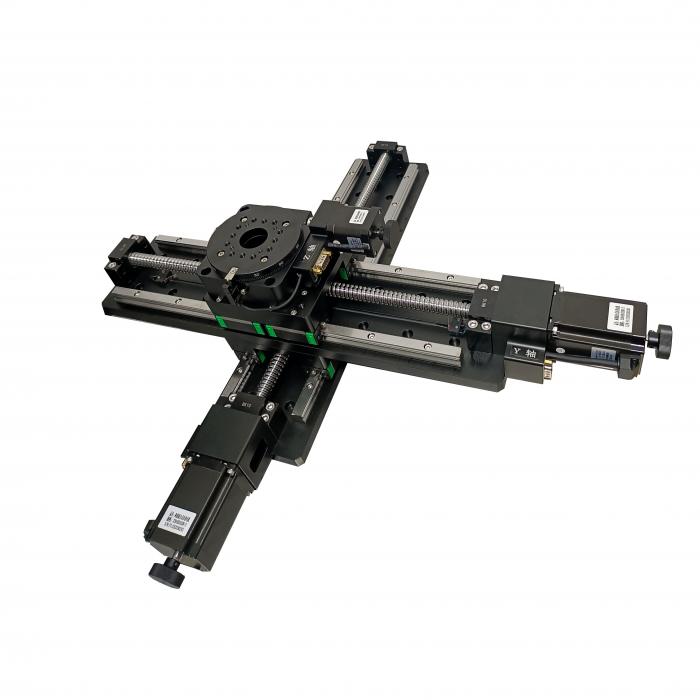

Motorized XY Translation Stage with Rotary Stage
Youtube Demo: Motorized XY Translation Stage with Rotary Stage
This motorized XY translation stage with rotary stage combines XY linear motion and rotary positioning in one custom motion system.
It is suitable for precision positioning, laboratory automation, optical alignment, testing fixtures and customized motion control applications.
Name | Motorized XY Translation Stage with Rotary Stage | |
Model Number | DZXYR331 | |
Weight | 16kg | |

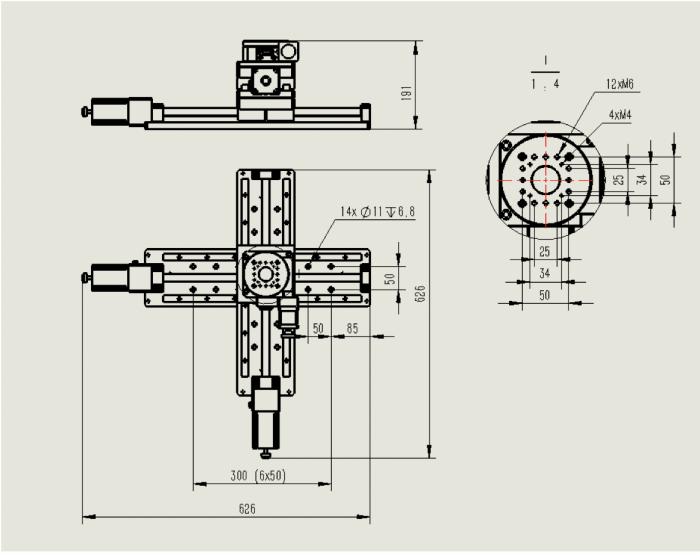

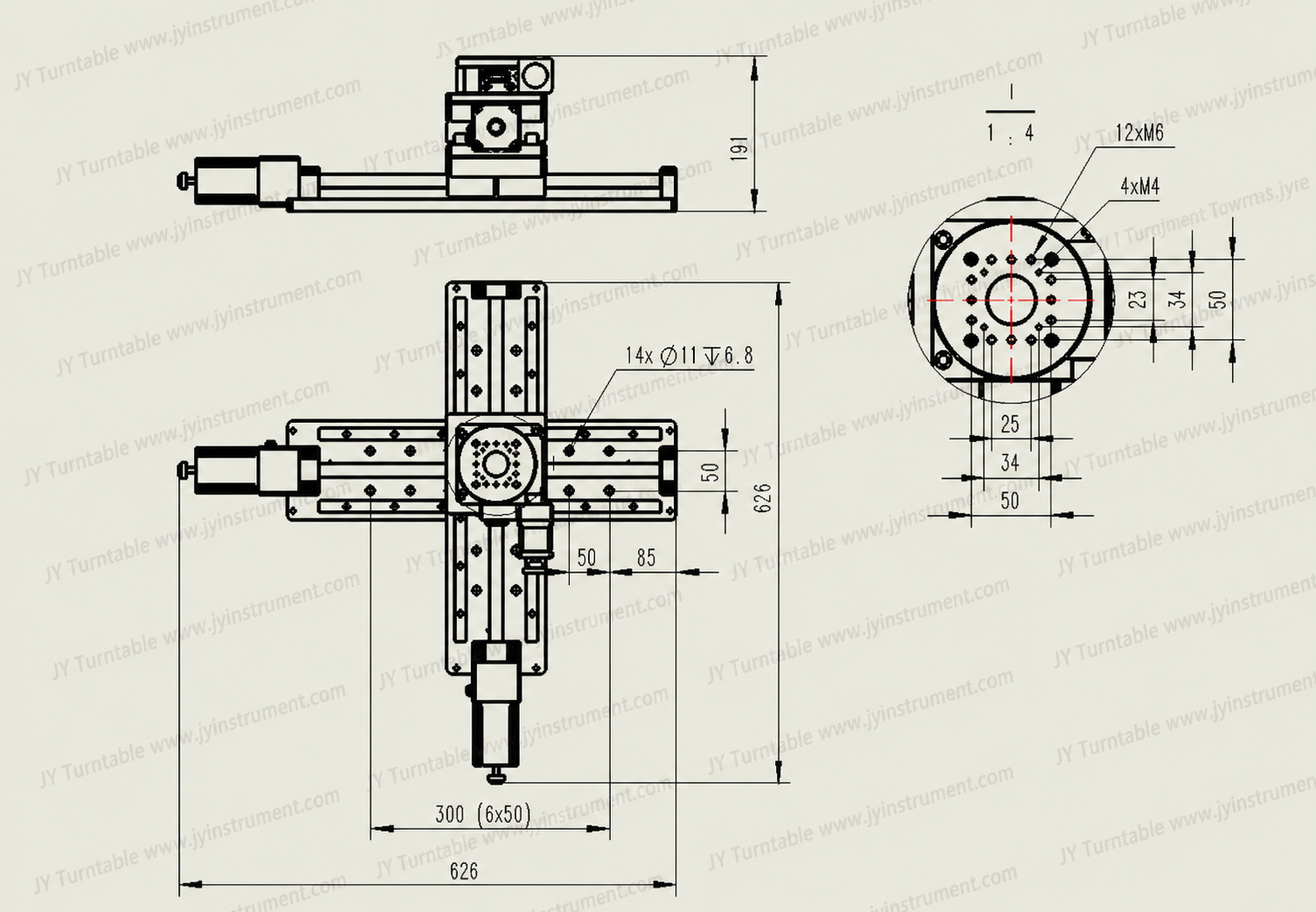

Dimension | 626X626X191mm | |
Material | Aluminum | |
Surface Treatment | Anodized-Black | |
Loading | 4kg | |
XY Linear Axes | Motor | 2-Phase, 1.8°, 57 Stepper Motor |
Motor Interface | RS232 | |
Speed | 20mm/s | |
Accuracy | ±0.05° | |
Travel Range | 300x300mm | |
Rotary Axis | Motor | 2-Phase, 1.8°, 42 Stepper Motor |
Motor Interface | RS232 | |
Speed | 10-20°/s | |
Accuracy | ±0.05° | |
Travel Range | >360°（When loading without cables） | |
Controller(optional) | Type | Stepper Motor |
Dimension | 390x155x344mm | |
weight | 10kg | |
Axes Number | 3 | |
Cable Length | 3M | |
Controller Interface | RJ45 or 232 | |
