| Name: | Manual Goniometer Stage: J02SJ20 |
|---|---|
Product Description

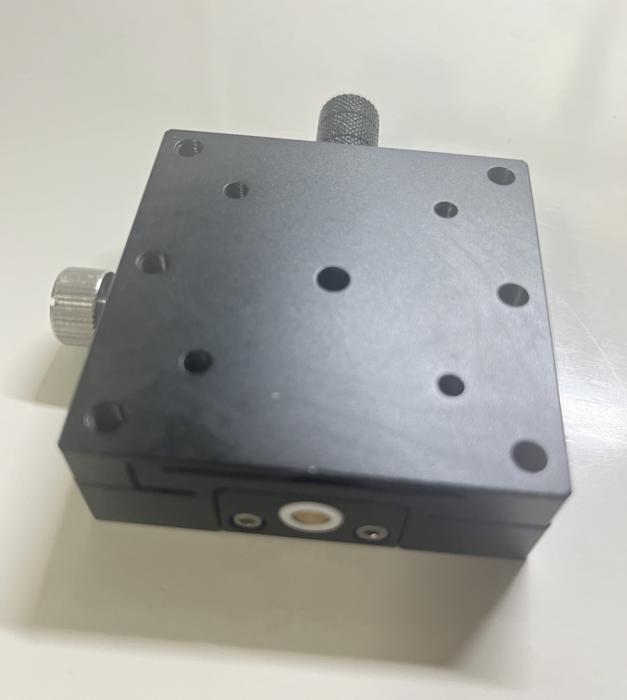

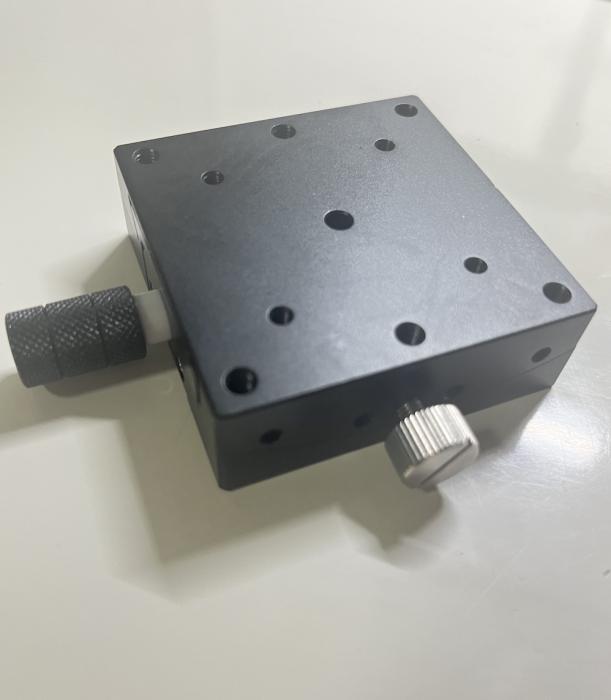

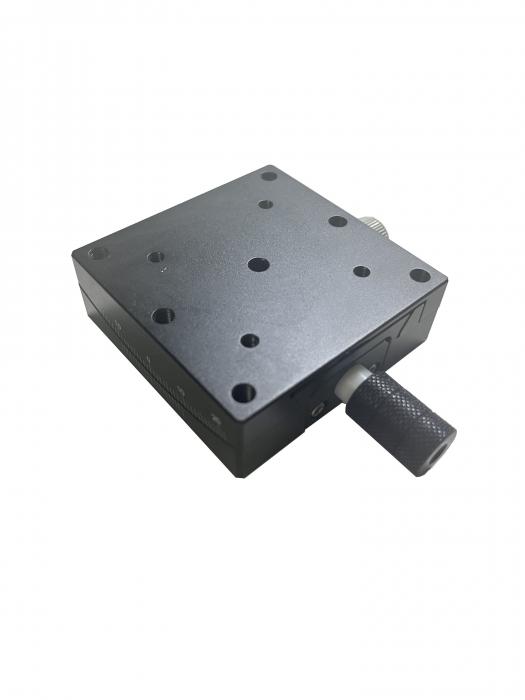

Manual Goniometer
Stage, Angle Range +/-20°
Production
Feature:
*The
goniometer stage can rotate in small angle
*Dovetail guide design for goniometer stage high loading and accuracy
*Wheel
screw can fix the goniometer stage position
*The
goniometer stage with regular holes for combine with other products easily

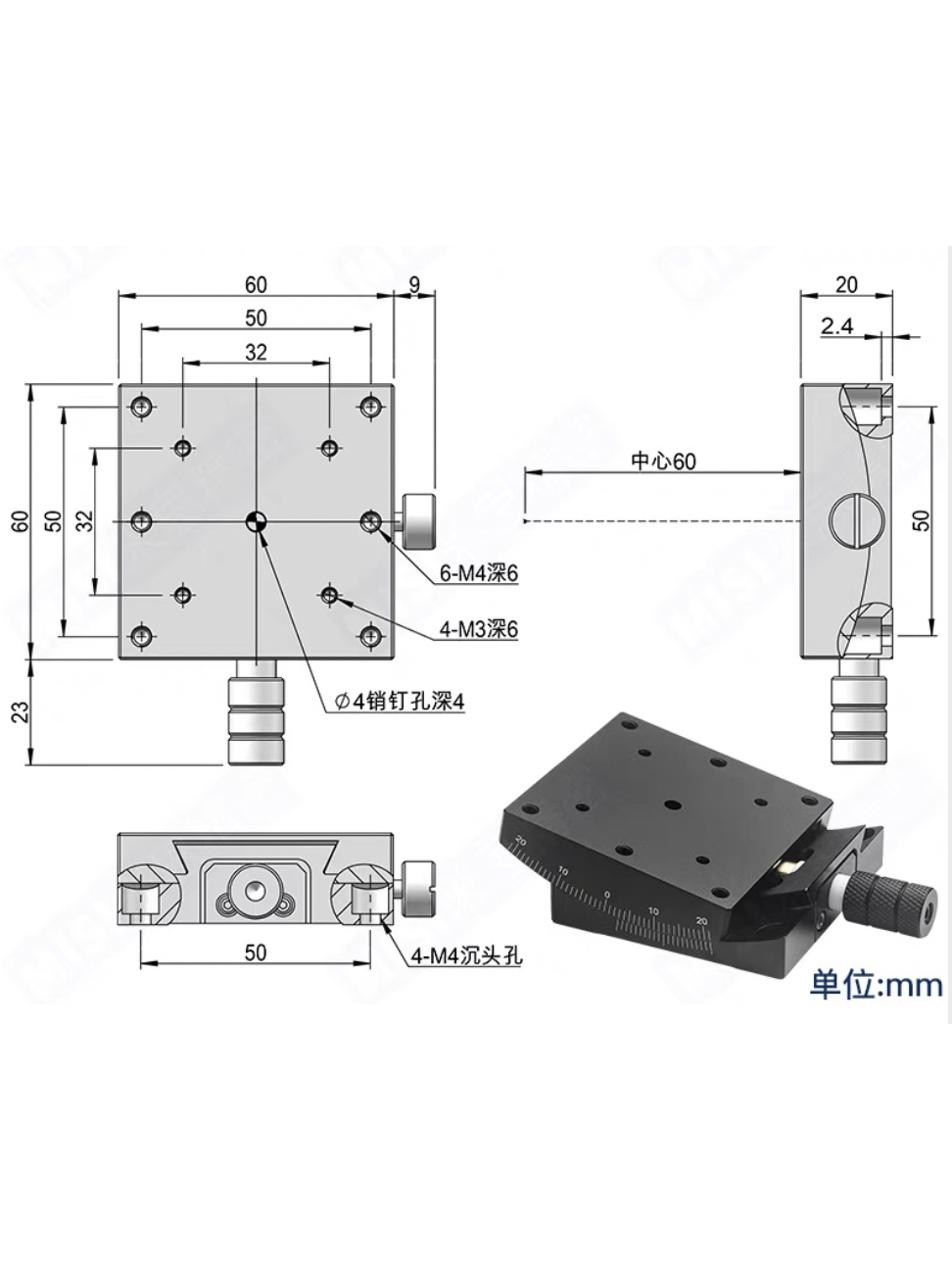

Model
Number | J02SJ20 |
Dimension | 60mm
x 60 mm |
Angle
Range | +/-10° |
Height
of Rotary Center | 60 mm |
Deviation
of Rotary Center | 0.1
mm |
Drive | Worm
Gear |
Guide | Dovetail
Guide |
Position
of Drive | In
center |
Min
Scale | 1° |
Min
Reading | 5’ |
Min
Adjustment | 30” |
Deflection | 200” |
Tilt | 200” |
Loading | 6kg |
Weight | 0.46kg |
Material | Aluminum |
Surface
Treatment | Black-Anodized |
