| Name: | Mini Motorized Linear Stage: J210TA |
|---|---|
Product Description

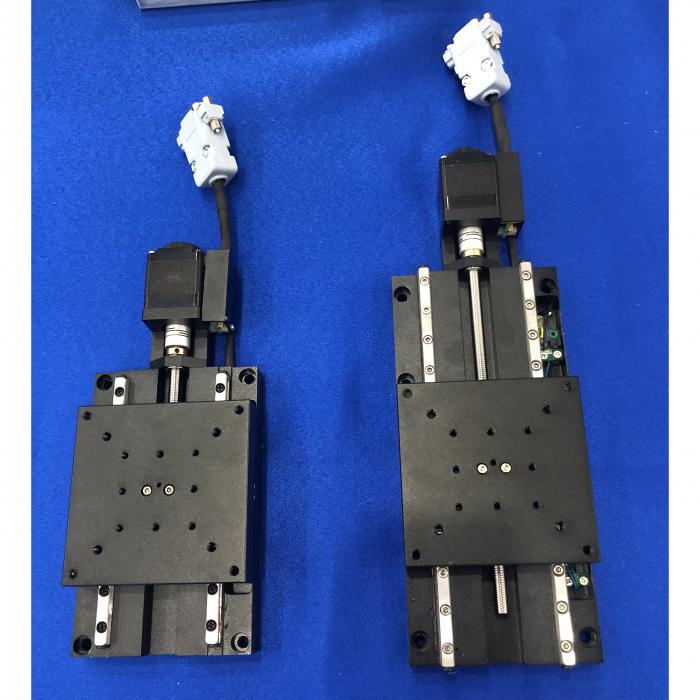

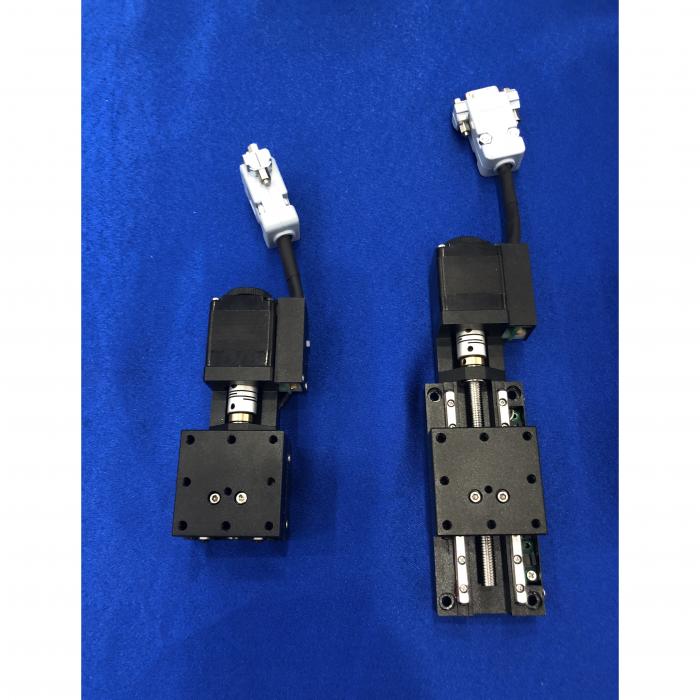

Mini Motorized Linear Stages
Model Number | J210TA1540 | J210TA5040 | J210TA2060 | J210TA5060 |
Travel Range | 15mm | 50mm | 20mm | 50mm |
Table Dimension | 40*40mm | 40*40mm | 60*60mm | 60*60mm |
Guide Rail | Cross-Roller Guide | |||
Screw Lead | 1mm | |||
Stepper Motor | 28 | |||
Material | Aluminum | |||
Surface Treatment | Black-Anodized | |||
Loading (Horizontal ) | 5kg | 5kg | 8kg | 8kg |
Weight | 0.4kg | 0.5kg | 0.4kg | 0.6kg |
Speed | 4mm/s | 4mm/s | 4mm/s | 4mm/s |
Repeatability | <2μm | |||
Resolution | 1μm | |||
Straightness | <20μm | |||
Parallelization | <20μm | |||
Model Number | J210TA10060 | J210TA3080 | J210TA5080 | J210TA10080 |
Travel Range | 100mm | 30mm | 50mm | 100mm |
Table Dimension | 60*60mm | 80*80mm | 80*80mm | 80*80mm |
Guide Rail | Cross-Roller Guide | |||
Screw Lead | 1mm | |||
Stepper Motor | 28 | |||
Material | Aluminum | |||
Surface Treatment | Black-Anodized | |||
Loading (Horizontal ) | 8kg | 10kg | 10kg | 10kg |
Weight | 0.8kg | 0.8kg | 1.2kg | 1.6kg |
Speed | 4mm/s | 4mm/s | 4mm/s | 4mm/s |
Repeatability | <2μm | |||
Resolution | 1μm | |||
Straightness | <20μm | |||
Parallelization | <20μm | |||
