| Name: | Motorized XYZ Linear Stage DZHTXYZ200 | 200mm Travel XYZ Translation Stage |
|---|---|
Product Description

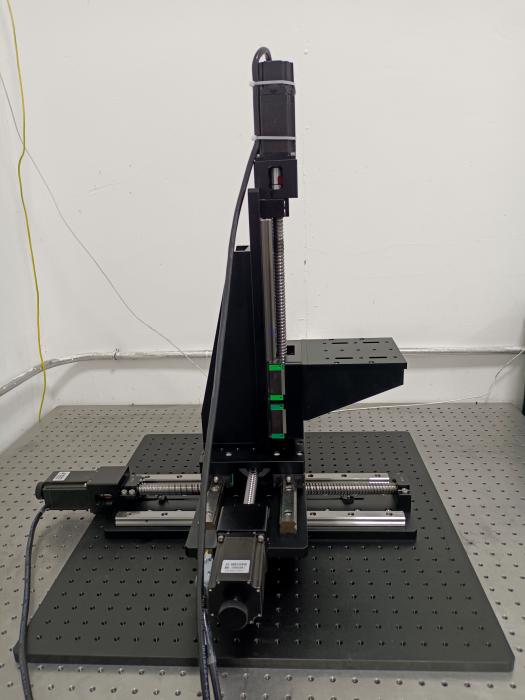

Motorized XYZ Linear Stage
DZHTXYZ200 is a motorized XYZ linear stage provided by JY Turntable by Beijing JY Instrument.
It offers 200mm travel on X, Y and Z axes, 10kg load capacity and 10μm positioning accuracy.

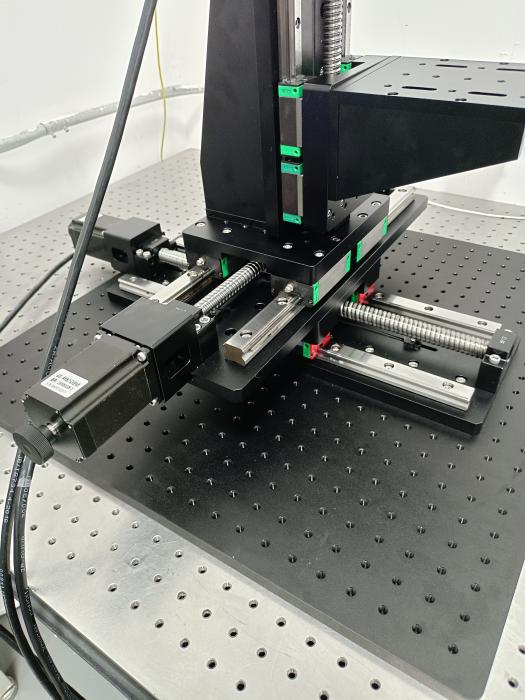

The stage uses stepper motors, ball screw drive and linear bearing guides for stable three-axis linear positioning.
It supports RS232 and Ethernet control, and comes with control software and development support.
This motorized XYZ translation stage is suitable for laboratory automation, optical alignment, inspection fixtures,
precision positioning, testing systems and custom motion control applications.
Youtube Demo: Motorized XYZ Linear Stage
System Name | Motorized XYZ Linear Stage | |
Model Number | DZJXYZ200 | |
Weight | XYZ 30KG,Controller 10kg | |

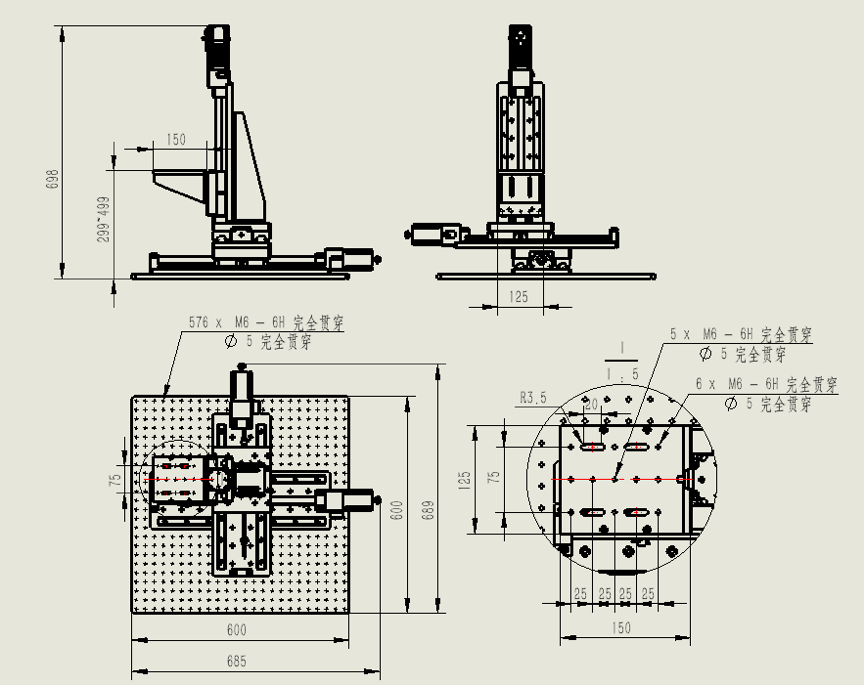

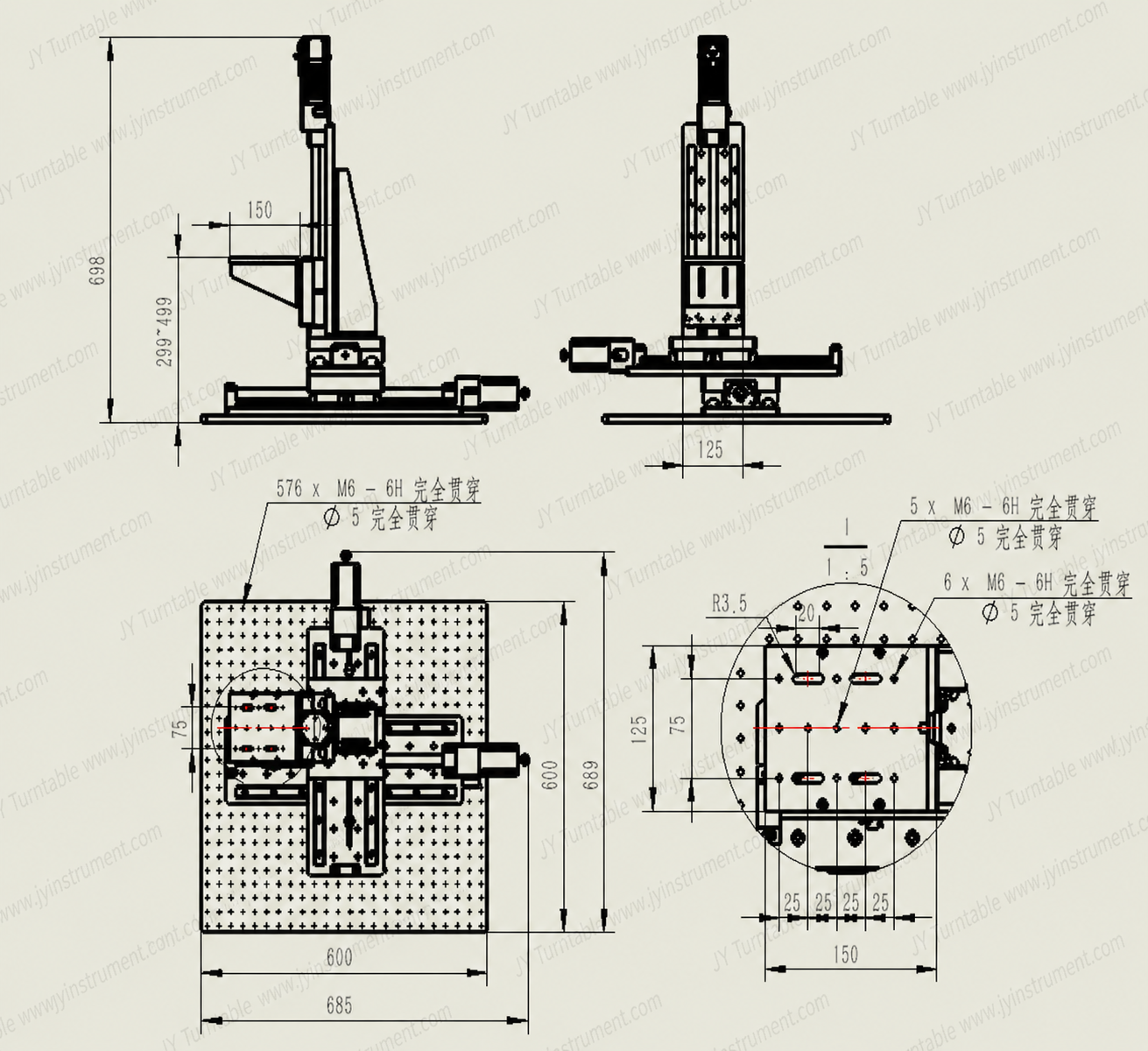

Dimension | 689x685x698mm | |
Material | Aluminum | |
Surface Treatment | Anodized-Black | |
Loading | 10kg | |
Power | 400W | |
Base Plate | 600x600x13mm,25x25mm,M6 | |
XYZ Axis | Motor | XY:57 Stepper Motor, Z:57 Stepper Motor |
Motor Interface | RS232 | |
Guide | Square Guide | |
Screw | 5mm, Ball Screw | |
Speed | 30°/s | |
Accuracy | 10μm | |
Travel Range | XYZ：200x200x200mm | |
Limited Switch | Both Ends | |

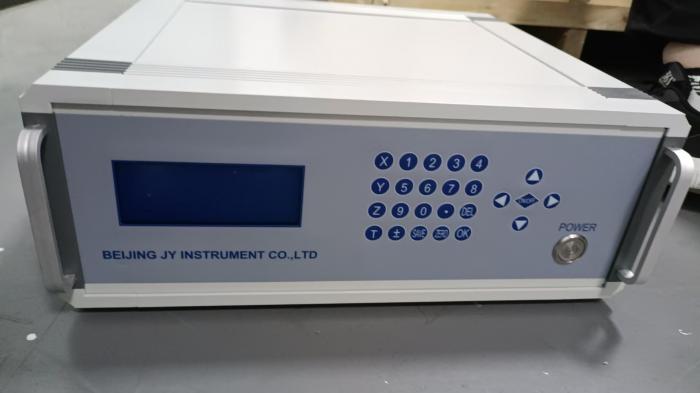

Controller | Type | Stepper Motor |
Voltage | 220V or 110V | |
Dimension | 390*155*344mm | |
Weight | 10kg | |
Axes | 3 Axes | |
Length of Cable | 3M | |

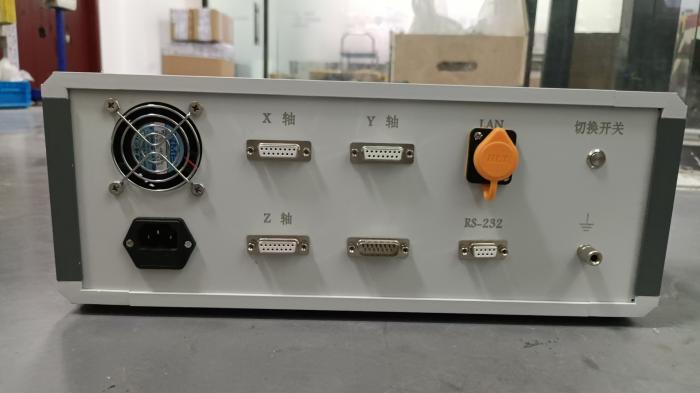

Interface | RS232 or RJ45 | |
Software | Yes | |
