| Name: | Motorized Antenna Positioner DZHTRA250912 | Elevation and Polarization Positioner |
|---|---|
Product Description
Motorized Antenna Positioner DZHTRA250912 | Elevation and Polarization Positioner
Youtube Demo: Motorized Antenna Positioner DZHTRA250912 | Elevation and Polarization Positioner

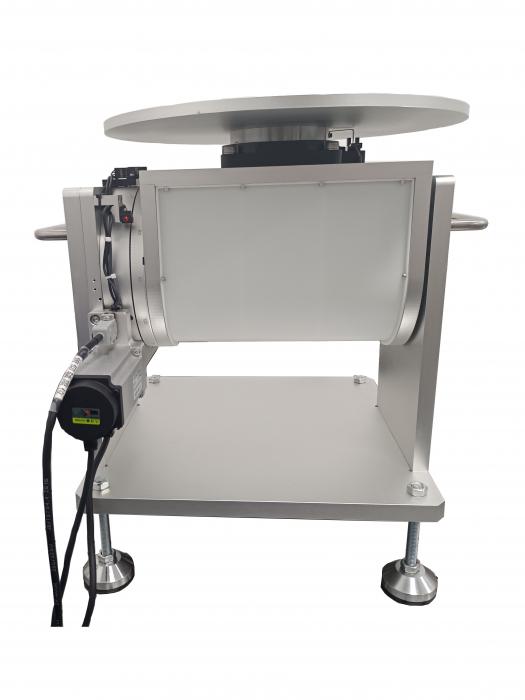

DZHTRA250912 is a motorized antenna positioner provided by JY Turntable by Beijing JY Instrument.
It is designed for antenna measurement, RF testing, radar testing and custom DUT positioning applications.
The system provides elevation and polarization rotation, with 0–360° polarization travel, ±70° elevation travel, 5kg load capacity,
0.1° positioning accuracy and 0.05° repeatability. A 400mm antenna mounting plate is provided for antenna samples,
DUT fixtures or custom test setups.
The controller supports RJ45 and RS232 communication, TTL synchronous pulse output and BNC trigger interface.
This antenna measurement positioner can be customized for far-field antenna measurement, near-field antenna measurement,
RF test systems and radar test applications.
Product Name | Motorized Antenna Positioner DZHTRA250912 | Elevation and Polarization Positioner | |
Model | DZHTRA250912 | |
Weight | 37KG (excluding controller) | |
Overall Dimensions | Approx. 440X449X400MM | |
Material | Aluminum alloy | |
Operating Environment | Normal indoor/outdoor temperature; no rain or frost | |
Surface Treatment | Natural anodizing | |
Load Capacity | 5kg | |
Slip Ring | The load has no cable; slip ring not included | |
Power | Approx. 800W | |
Polarization Axis / Elevation Axis | Drive Type | Single-turn absolute servo motor |
Speed | 10°/s | |
Positioning Accuracy | 0.1° | |
Repeatability | 0.05° | |
Rotation Range | Polarization axis: 0-360°

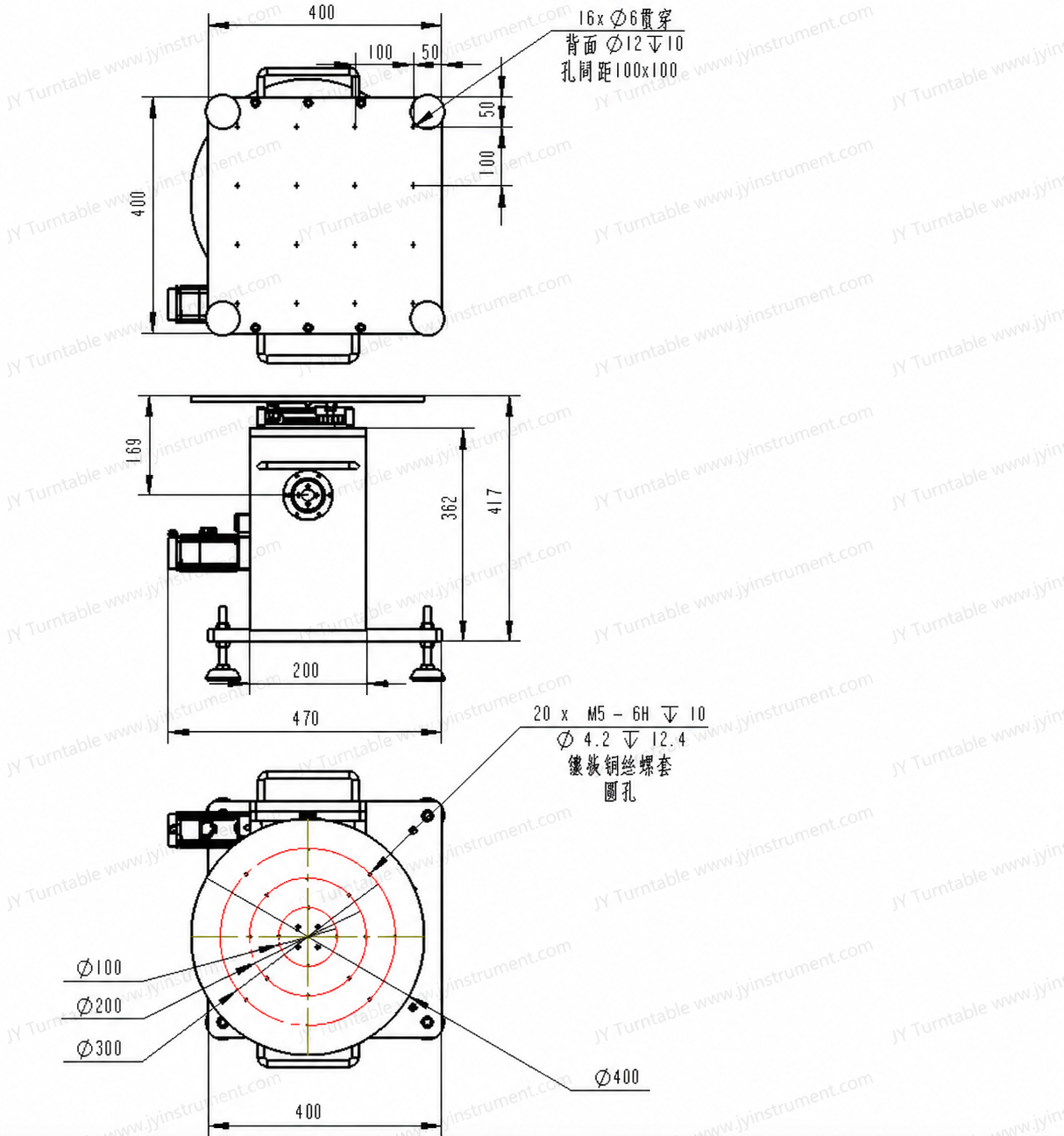

| |
Home / Zero Position | Included | |
Polarization Axis Antenna Mounting Plate | Diameter 400mm (hole pattern as shown); all threaded holes are fitted with wire thread inserts | |
Control System | Control Type | Single-turn absolute servo motor |
Voltage | 220V | |
Overall Dimensions | Estimated height: 215mm; width: 50mm7; depth: 460mm (subject to actual cabinet dimensions) | |
Weight | 13kg | |
Number of Controlled Axes | 2 axes | |
Controller-to-mechanism and network cable length | 5 m | |
Controller power cable length | Standard | |
Serial cable length | Standard | |
Controller Interface | RJ45 and RS232 | |
Pulse Trigger | Synchronous pulse output available. TTL level, minimum pulse width 10μs, BNC interface | |
Warranty Period | One year | |
