| Name: | Motorized Linear Stages: J04DP(100-600) |
|---|---|
Product Description

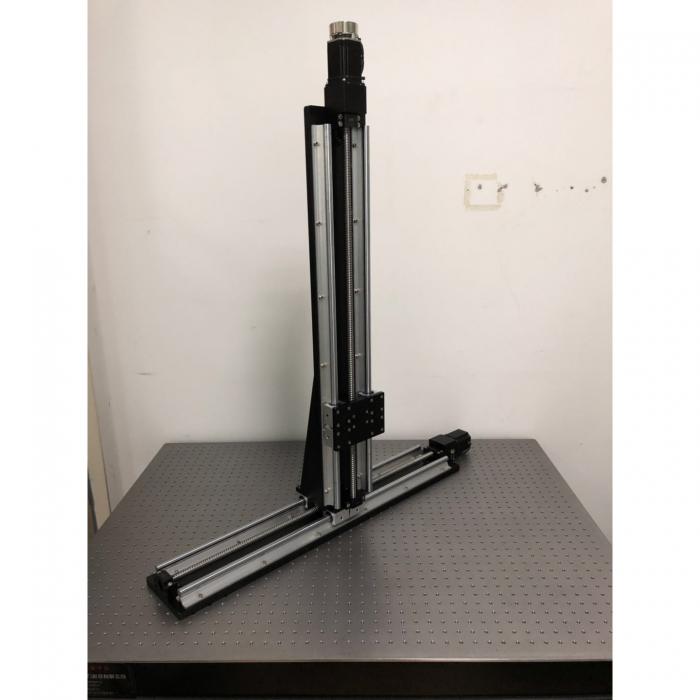

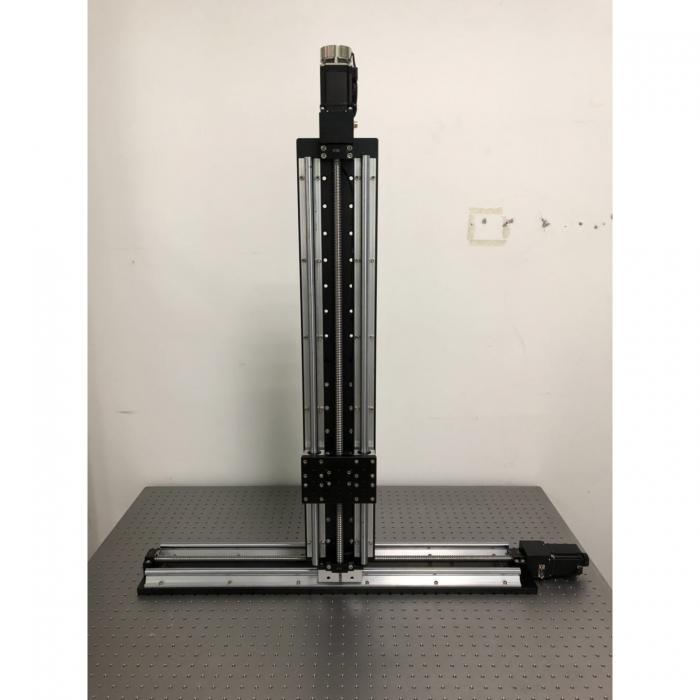

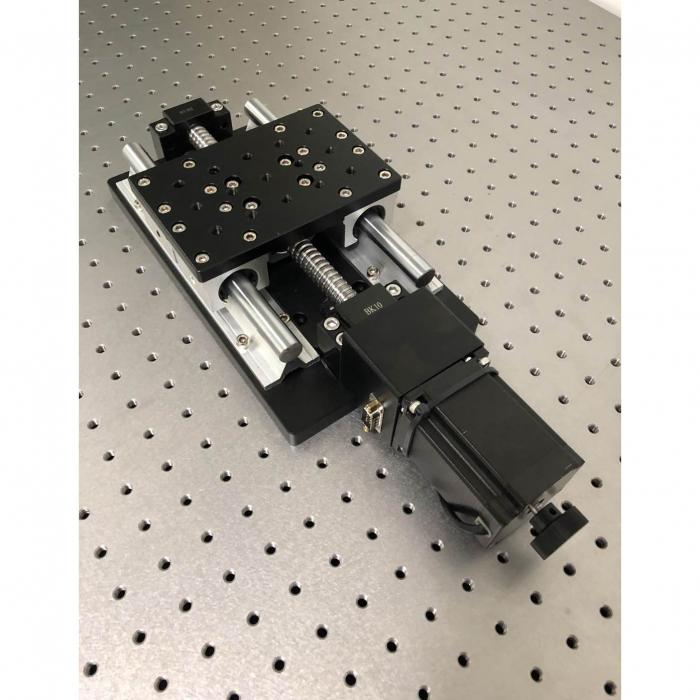

Motorized Linear Stages (Round guide type)
Features
*Regular
linear stage type set with small 1.8°2-phase stepper motor
*High
precise ball screw provides linear stage high-performance and high-accuracy
*Round
guide for linear stage long travel but low-loading use
*Special
design for couple with other linear stage easily
*The
basic type can set with linear stage grating scales, servo motor
*RS232 interface for linear stage connecting motion
controller easily
Model Number | J04DP100 | J04DP150 | J04DP200 | J04DP300 | J04DP400 | J04DP500 | J04DP600 | ||||||
Travel Range | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm | 600mm | ||||||
Bearing | High Precise Ball
Screw with 5mm leading | High
Precise Ball Screw with 5mm leading | |||||||||||
Travel Guide | Round rail | ||||||||||||
Stepper Motor | 1.8° 2-phase
STP-57D3016 stepper motor (servo optional) | ||||||||||||
Material- Finish | Aluminum Alloy
Black-Anodized | ||||||||||||
Max Load Capacity | 30kg horizontal/
15kg vertical | ||||||||||||
Weight | 4.0kg | 5.5kg | 5.9kg | 6.3kg | 7.0kg | 12.0kg | 15.0kg | ||||||
Resolution | 20μm /pulse, non-ms driver 1μm /pulse, 20ms
driver | 20μm
/pulse, non-ms driver 1.25μm
/pulse, 20ms driver | |||||||||||
Max Speed | 40mm/sec | 50mm/sec | |||||||||||
Repeatability | 8μm | ||||||||||||
Absolute Accuracy | 10μm | ||||||||||||
Straightness | 15μm | 30μm | 60μm | ||||||||||
Degree of Parallelization | 20μm | 25μm | 30μm | ||||||||||
Pitching | 80” | 80” | 80” | ||||||||||
Yawing | 60” | 60” | 60” | ||||||||||
Backlash | 8um | ||||||||||||
Optional Accessories | Brake
Function, Grating Scales, Servo Motor and Dust Cover | ||||||||||||

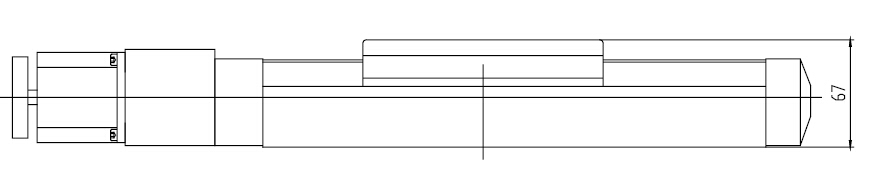

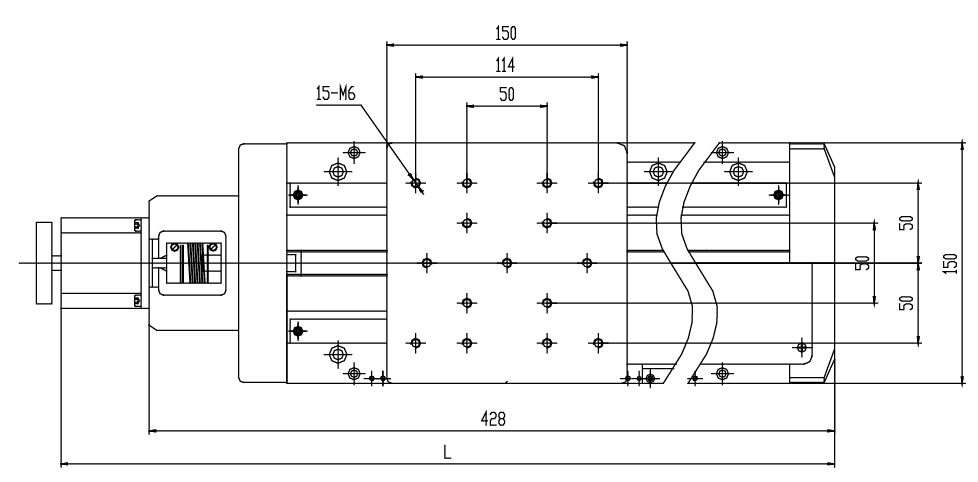

型号(Model Number) | J04DP50 | J04DP100 | J04DP150 | J04DP200 | J04DP300 | J04DP400 | J04DP500 |
L | 252 | 302 | 352 | 402 | 502 | 602 | 702 |
