| Name: | 100mm Motorized Rotary Stage J02DX100 | Precision Rotary Table |
|---|---|
Product Description

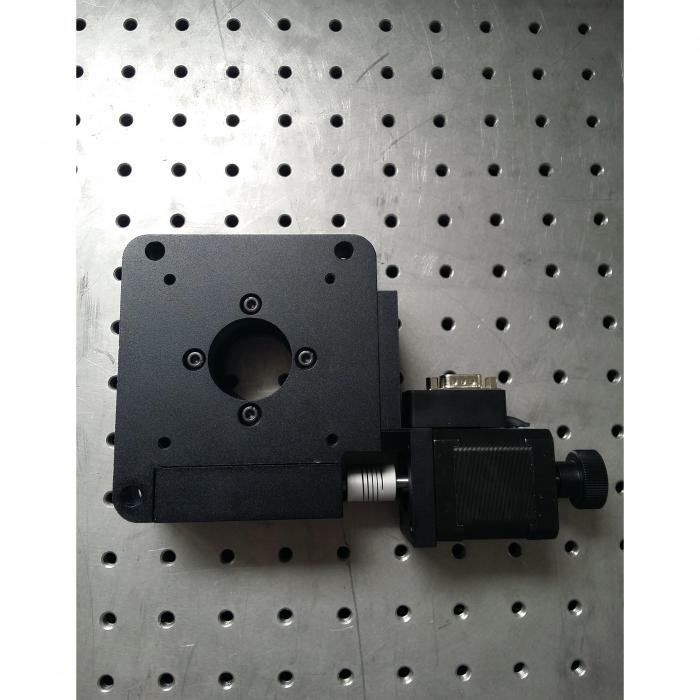

100mm Motorized Rotary Stage J02DX100 | Precision Rotary Table（Through Hole Diameter 30mm)
XYZ Table / 3-Axis Turntable Demo
Feature：
100mm Motorized Rotary Stage J02DX100 is a precision rotary positioning table for
laboratory, automation, optical alignment, antenna positioning and custom motion control applications.
This motorized rotary stage can be used alone as a single-axis rotary table, or combined with linear stages
and other motion products to build XY, XYZ and multi-axis positioning systems.
Item
Number | J02DX100 |
Angle
Range | 360° |
Dimension | diameter 100mm |
Worm
Gear Ratio | 180:1 |
Drive
Mechanism | Worm
Gear |
Guide | Bearing |
Stepper
Motor(1.8°) | SST4202121 |
Material | Aluminum |
Surface
Treatment | Black-
Anodized |
Loading | 45kg |
Weight | 1.5kg |
Resolution | 0.01° non-driver 0.00125° 20
MS driver |
Speed | 20°/sec |
Repeatability | 0.005° |
Accuracy | 0.01° |
Run
Out of Top | 15μm |
Backlash | 0.005° |
Eccentricity | 5μm |
Degree
of Parallelization | 80μm |
FAQ
Q: Which motorized rotary stage is suitable for small sensors, samples, or optical components?
A: A 100mm motorized rotary stage is suitable for small to medium-size sensors, samples, optical components, and test fixtures that need a stable rotating platform. Compared with a smaller 60mm mini rotary stage, the 100mm table provides more mounting space for fixtures, adapters, or customer-specific installation needs.
Q: What table size should I choose for a motorized rotary stage?
A: The table size depends on the sample size, fixture size, load requirement, and available installation space. A 60mm mini rotary stage is better for very compact setups, while a 100mm motorized rotary stage is more suitable when the customer needs extra mounting space, better fixture support, or easier integration into a laboratory or motion control system.
