| Name: | Motorized Rotary Stage: J01DX40 |
|---|---|
Product Description

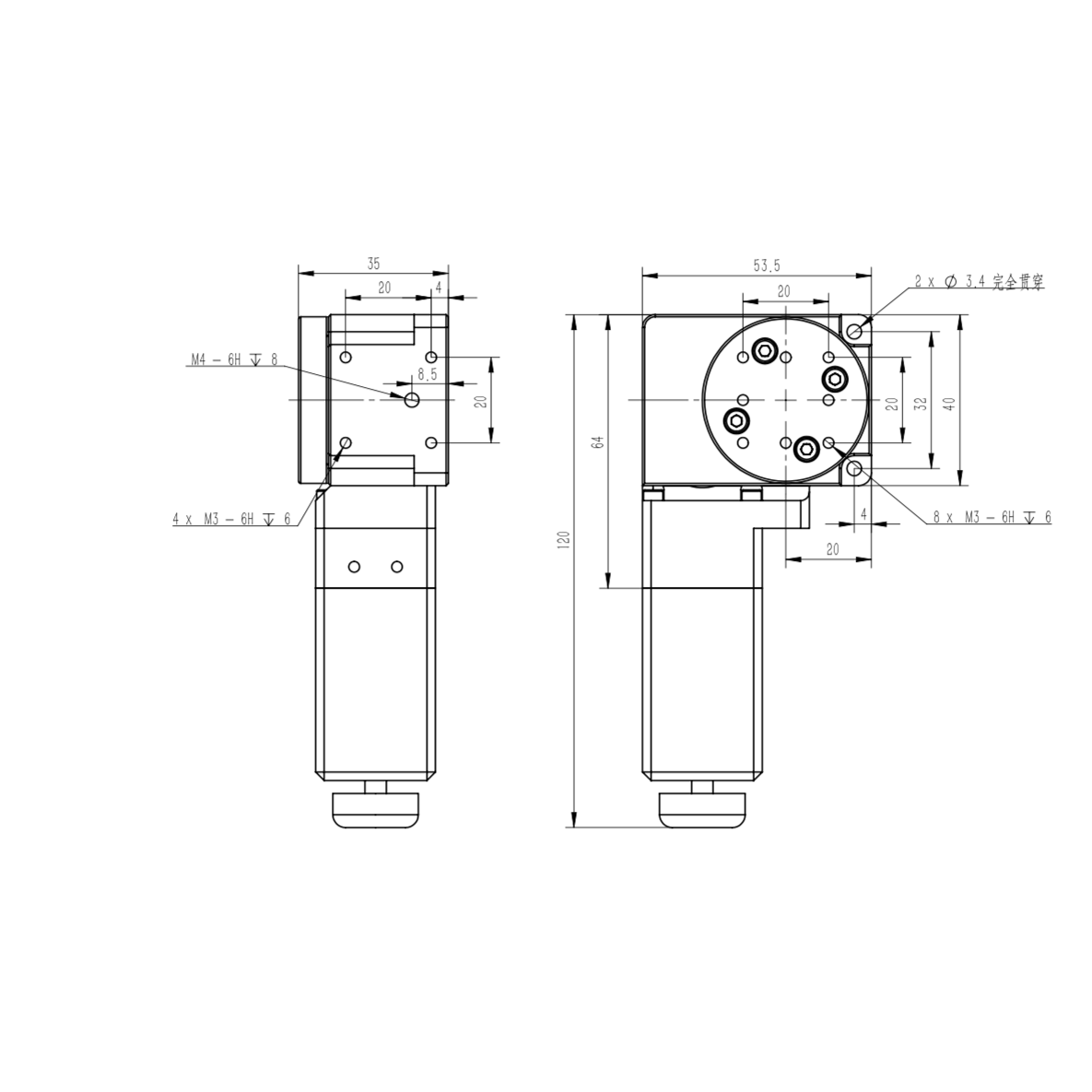

Mini Motorized Rotary Stage (diameter 40mm)
Feature
*Regular stage set with stepper motor and RS232 interface, could connect with motion controller easily
*High precision Worm gear design for high accuracy, loading and long working time.
*Forward and reverse rotate are possible
*The stage could use in vertical and assemble with other stages
*40mm diameter dimension but without through hole
Item Number | J01DX40 |
Angle Range | 360° |
Dimension | diameter 40mm |
Worm Gear Ratio | 120:1 |
Drive Mechanism | Worm Gear |
Guide | Bearing |
Working Current | 1.2A |
Stepper Motor(1.8°) | 28 Stepper motor |
Material | Aluminum |
Surface Treatment | Black- Anodized |
Loading | 2kg |
Weight | 0.32kg |
Resolution | 0.015° non-driver 0.00094° 16 MS driver |
Speed | 15°/sec |
Repeatability | 0.0067° |
Run Out of Top | 10μm |
Backlash | 0.0067° |
Eccentricity | 0.005° |
Degree of Parallelization | 80μm |
Home Switch | No |
