| Name: | NEW Motorized Linear Stages: J80DP(50-500) |
|---|---|
Product Description

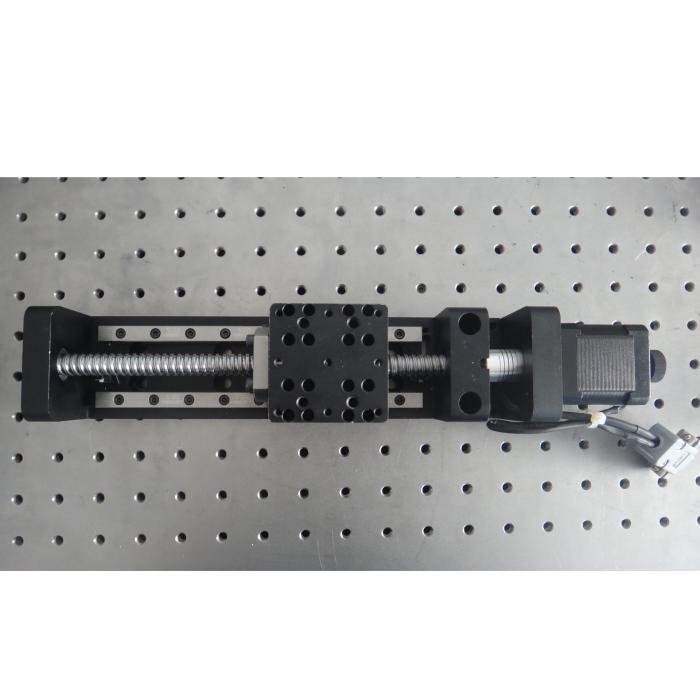

NEW Motorized Linear Stages
Features
*High

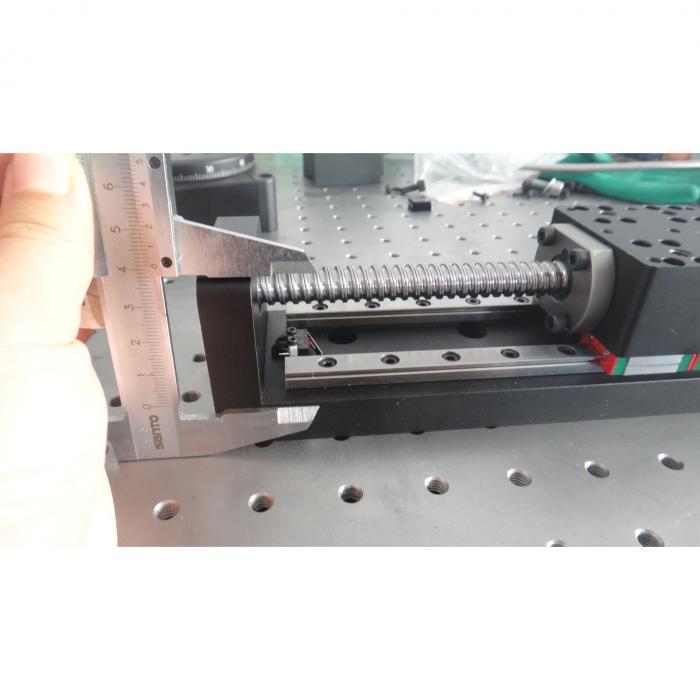

precise ball screw provides linear stage high-performance and high-accuracy
*Regular type set with linear stage small
1.8°2-phase stepper motor
*Square
rail and sliding block supply linear stage high-loading, special in horizontal use
*Special
design for couple with other linear stage easily
*The
basic type can set with linear stage grating scales, servo motor
*RS232 interface for linear stage connecting motion
controller easily
Linear stage working Video: https://www.youtube.com/channel/UCoQRX1EK9bqFArK5BMPZw9Q
Model Number | J80DP50 | J80DP100 | J80DP150 | J80DP200 | J80DP300 | J80DP400 | J80DP500 | ||||||
Travel Range | 50mm | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm | ||||||
Bearing | High Precise Ball
Screw with 4mm leading | High
Precise Ball Screw with 5mm leading | |||||||||||
Travel Guide | Square rail and
sliding blocks | ||||||||||||
Stepper Motor | 1.8° 2-phase
STP-57D3016 stepper motor (servo optional) | ||||||||||||
Material- Finish | Aluminum Alloy Black-Anodized | ||||||||||||
Max Load Capacity | 20kg horizontal/ 10kg
vertical | 30kg horizontal/ 10kg
vertical | 50kg horizontal/
15kg vertical | ||||||||||
Weight | 1.5kg | 3kg | 4kg | 5kg | 6kg | 12.0kg | 15.0kg | ||||||
Resolution | 20μm/pulse, non-ms
driver 1.25μm /pulse, 16ms
driver | 20μm
/pulse, non-ms driver 1.56μm
/pulse, 16ms driver | |||||||||||
Max Speed | 30mm/sec | 40mm/sec | |||||||||||
Repeatability | 5μm | ||||||||||||
Absolute Accuracy | 8μm | ||||||||||||
Straightness | 5μm | 6μm | 8μm | ||||||||||
Degree of Parallelization | 10μm | 15μm | 20μm | ||||||||||
Pitching | 25” | 50” | 60” | ||||||||||
Yawing | 20” | 25” | 30” | ||||||||||
Backlash | 5μm | ||||||||||||
Optional Accessories | Brake
Function, Grating Scales, Servo Motor | ||||||||||||
