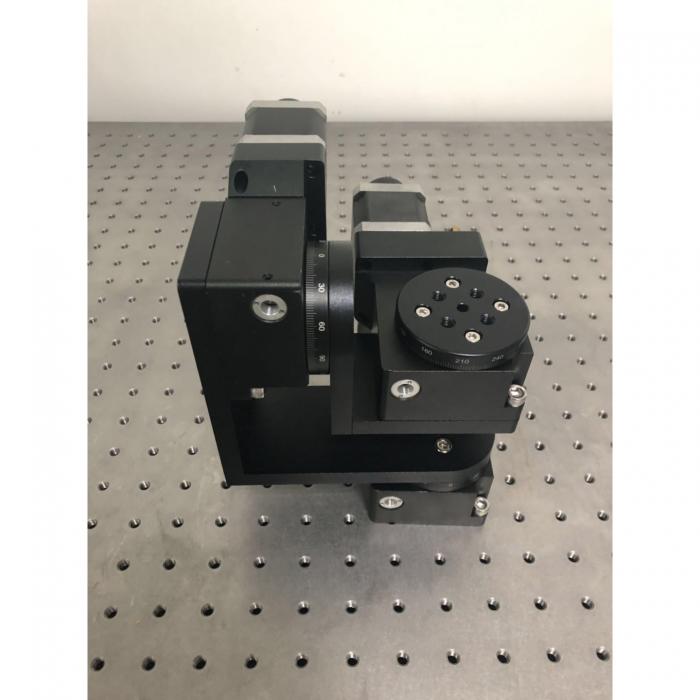

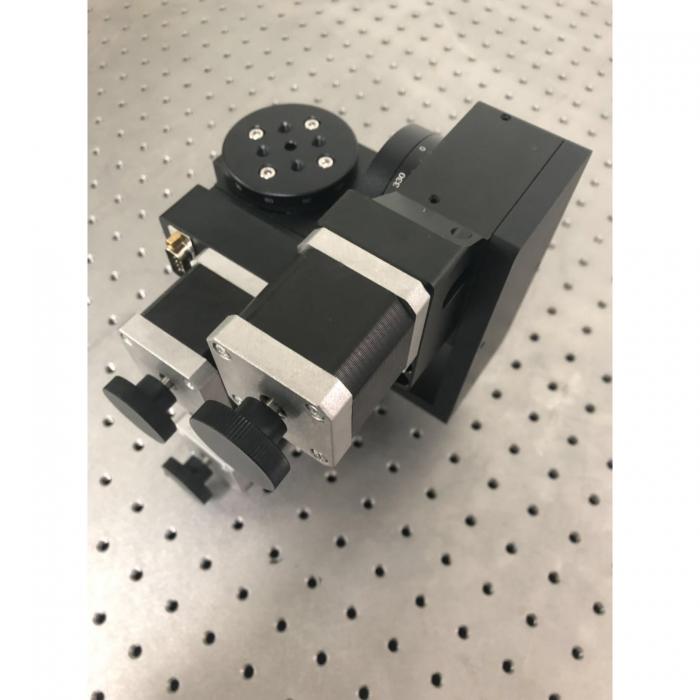

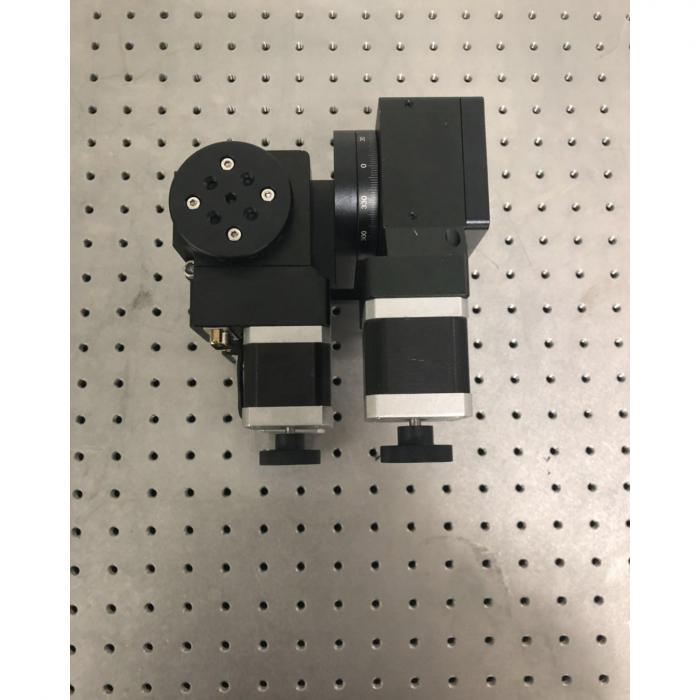

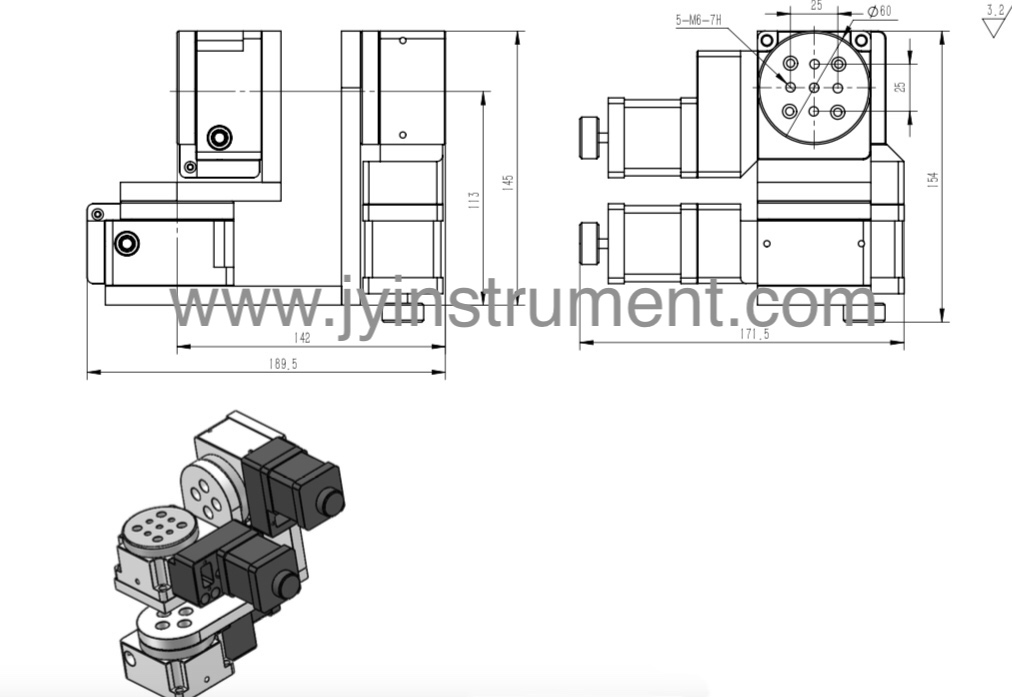

Name:Mini Motorized XYZ Rotary Stage: J3WDX60

Product Description

3 Axes Motorized Rotation Stages




Model Number

DZJ3WDX600

Angle Range

360°for X, Y, Z axis

Worm Gear Ratio

90:1

Driver

Worm Gear

Guide

Bearing

Stepper Motor(1.8°)

42 stepper motor

Material

Aluminum

Surface Treatment

Black-anodized

Loading

3kg

Weight

3kg

Resolution

0.01°, non-ms driver

0.0025°, 8MS driver

Speed

40°/sec

Repeatability

0.005°

Run-out of top plate

15μm

Backlash

0.005°
