Name: | Motorized XYZ Rotating Micro Positioning Stage |
---|---|
Product Description

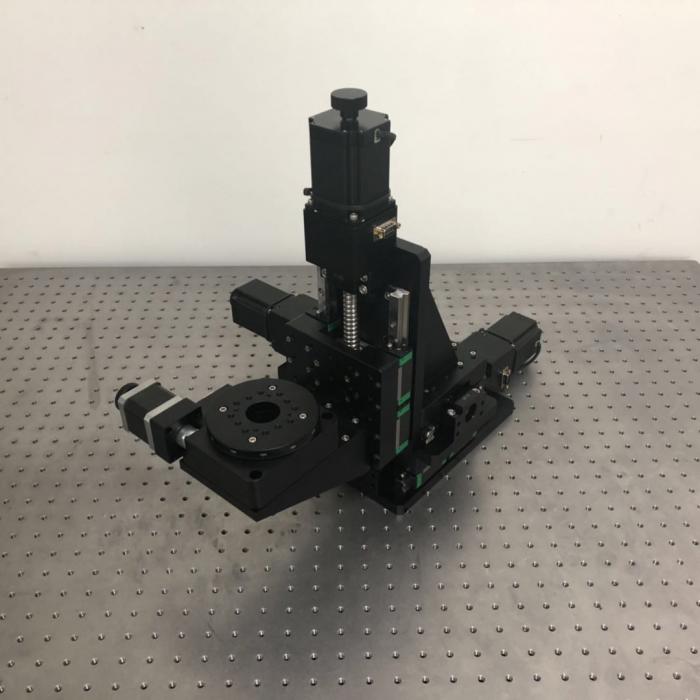

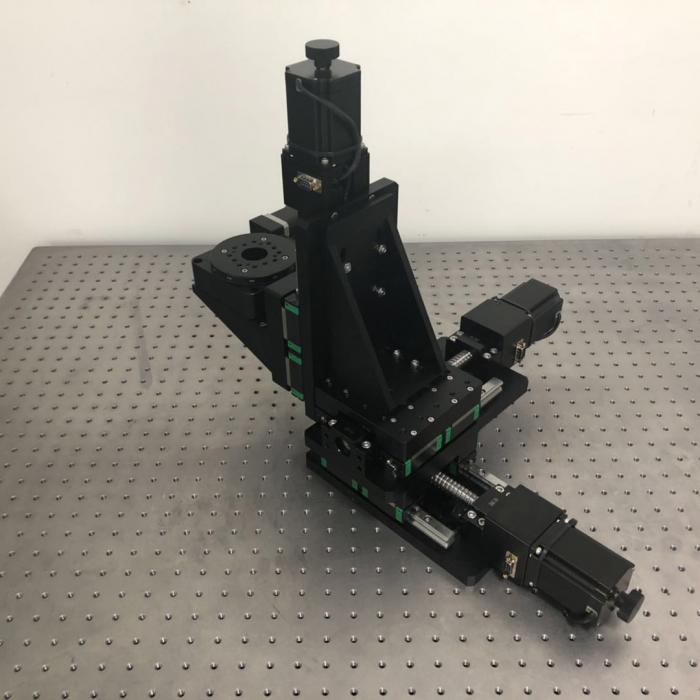

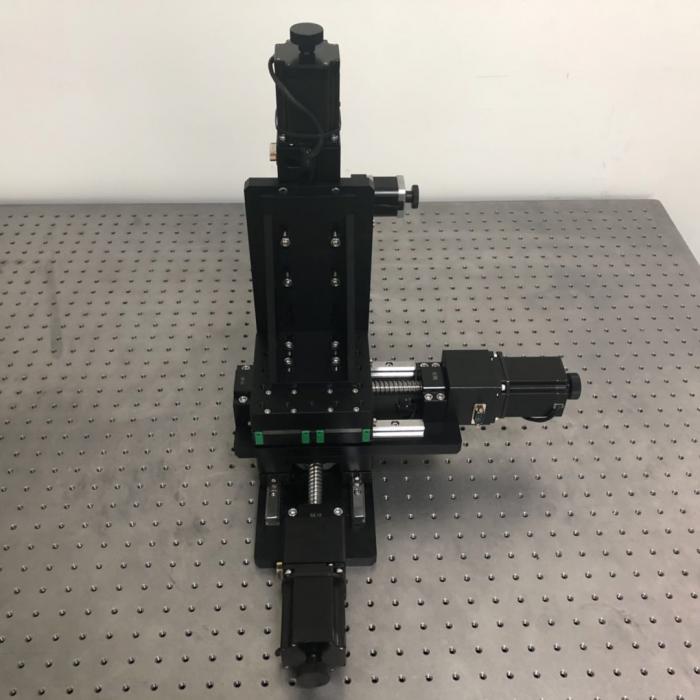

Motorized XYZ Rotating Micro Positioning Stage
Function:
1. The xyz rotating micro positioning stage move in X, Y, Z, R directions.
2. The travel range of picture XYZ is 50*50*50mm. The travel range could be 50 to 700mm.
R axis use one 100mm diameter motorized rotary stage J02DX100.
3. All of linear stages of this XYZ rotating micro positiong stage have two limited switches to protection.
4. 4-axis synchronous controller J200MC supplies 4 axes move at the same time, to realize very accuracy positioning by laptop or desktop.
This system could be redesigned according to your different travel range and loading requirements.
More information please email us!
Model Number | J03DP-XYZR5010 |
Travel Range | 50*50*50mm Rotary axis> 360° |
Bearing | Ball Screw with 5mm leading |
Travel Guide | Square Rail |
Stepper Motor | 1.8 °, 2-phase, 57 stepper motor or 42 motor with RS232 interface |
Material-Finish | Aluminum Alloy Black-Anodized |
Max Load Capacity | 5kg without braking protection motor/ 20kg with braking protection motor |
Resolution | 20μm/pulse, non subdivision 1μm/pulse, 20 subdivision |
Max Speed | 40mm/sec |
Repeatability | 5μm |
Absolute Accuracy | 8μm |
Straightness | 30μm |
Degree of Parallelization | 20μm |
Pitching | 80“ |
Yawing | 60” |
Backlash | 8μm |
Optional Accessories | Braking Protection Motor |
