Name:Motorized Rotary Stage: J04DX300

Product Description

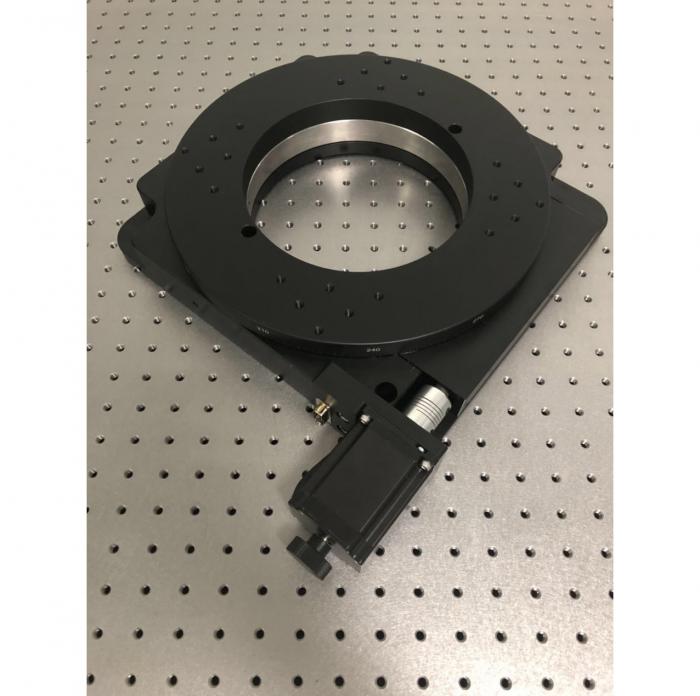

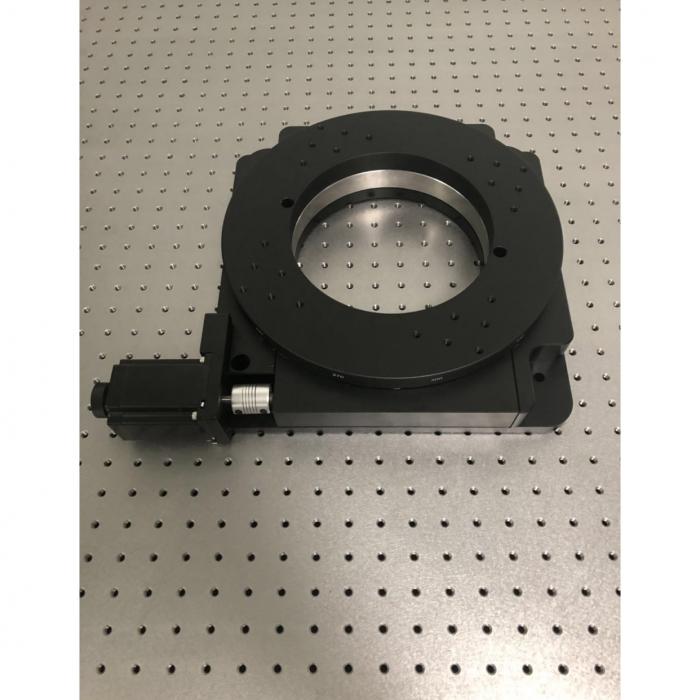

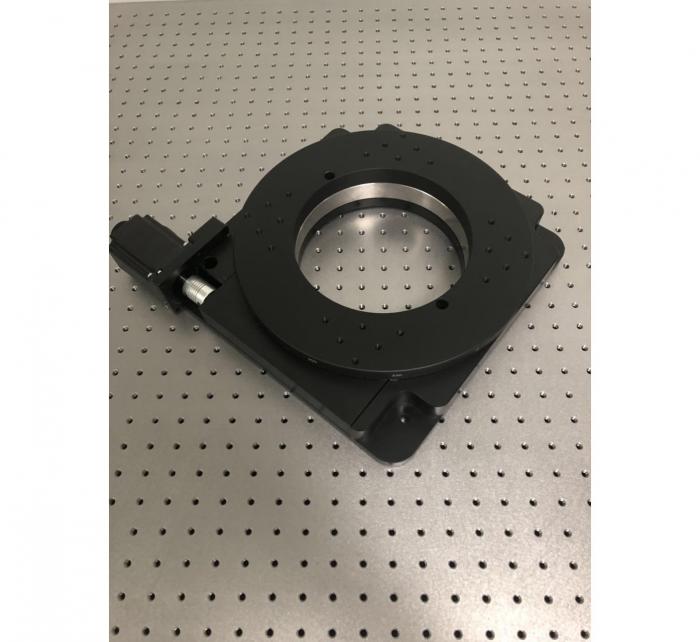

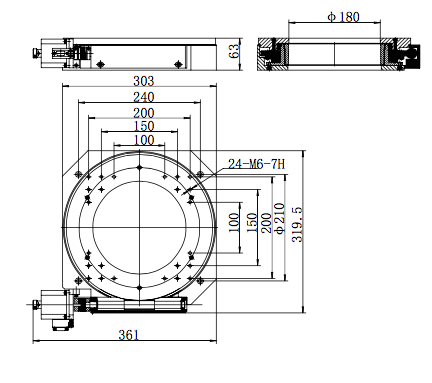

Heavy Loading Motorized Rotary Stage (diameter 300mm)



Feature

*Regular rotary stage set with stepper motor and RS232 interface, could connect with motion controller easily

*High precision rotary stage's Worm gear design for high accuracy, loading and long working time.

*Forward and reverse rotate are possible

*The rotary stage could use in vertical and assemble with other stages

*300mm diameter dimension of rotary stage and with rough dia 200mm through hole for add rotating encode possible

*The regular rotary stage stage without limit switch and home position, but can add according to requirements



Item  Number

J04DX300

Angle  Range

360°

Dimension

diameter  60mm

Worm  Gear Ratio

288:1

Drive  Mechanism

Worm  Gear

Guide

Bearing

Stepper  Motor(1.8°)

SST57D3301

Material

Aluminum

Surface  Treatment

Black-  Anodized

Loading

62kg

Weight

12kg

Resolution

0.01° non-driver

0.00125° 20  MS driver

Speed

12°/sec

Repeatability

0.005°

Accuracy

0.01°

Run  Out of Top

15μm

Backlash

0.005°

Eccentricity

5μm

Degree  of Parallelization

80μm
