| Name: | Motorized Rotary Stage: J02DX100 |
|---|---|
Product Description
Mini
Motorized Rotary Stage (diameter 100mm with 30mm through hole)
Feature
*Regular rotary stage set with stepper motor and RS232 interface, could connect with motion
controller easily
*High
precision rotary stage Worm gear design for high accuracy, loading and long working time.
*Forward
and reverse rotate are possible
*The rotary stage could use in vertical and assemble with other stages
*100mm
diameter dimension and with almost 28mm through hole in rotary stage middle.
*The
regular rotary stage without limit switch and home position, but can add according to
requirements

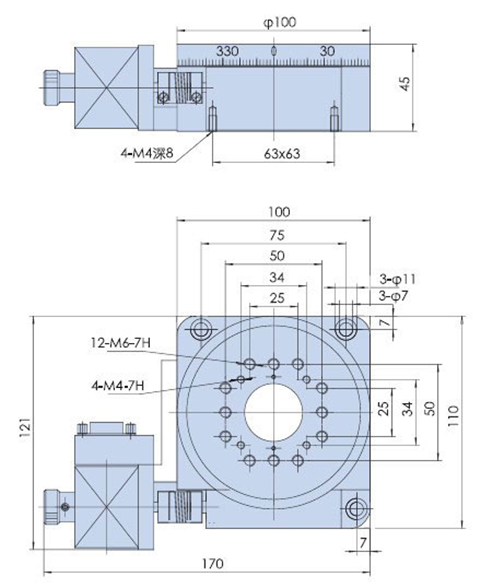

Item
Number | J02DX100 |
Angle
Range | 360° |
Dimension | diameter 100mm |
Worm
Gear Ratio | 180:1 |
Drive
Mechanism | Worm
Gear |
Guide | Bearing |
Stepper
Motor(1.8°) | SST4202121 |
Material | Aluminum |
Surface
Treatment | Black-
Anodized |
Loading | 45kg |
Weight | 1.5kg |
Resolution | 0.01° non-driver 0.00125° 20
MS driver |
Speed | 20°/sec |
Repeatability | 0.005° |
Accuracy | 0.01° |
Run
Out of Top | 15μm |
Backlash | 0.005° |
Eccentricity | 5μm |
Degree
of Parallelization | 80μm |
